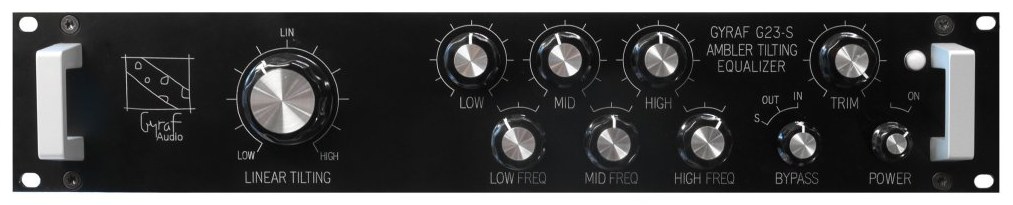

G23-S Ambler Tilt EQ
The G23-S is a stereo Tilt EQ aimed to tad a mix or master darker or brighter without messing up the overall definition.
- Status
- Made to order
- Delivery
- 4–8 weeks
About this product
The G23-S is a stereo Tilt EQ aimed to tad a mix or master darker or brighter without messing up the overall definition. Gentleness and subtlety are main design targets: Tilt and Highs at +/-4dB, Mids at +/-2dB, and Lows at +/-6.5dB.
The Tilt is designed around a highly linear 1dB/oct slope filter, so that rotating the tilt control will tilt an almost ruler-straight response curve, to a maximum steepness of 1dB/octave. And to correct outer ends of spectrum, a gentle Baxandall tone control shelving lows and highs and a wide-Q bell for the mids - each at three selectable frequencies - have been added.
The G23-S is based on tubes and passives alone. Bypass is full-relay, and it has a gain trim function for easing comparison between direct and processed material.
Technical
- Stereo Tilt EQ with a highly linear 1dB/oct slope filter
- Tilt and Highs at +/-4dB, Mids at +/-2dB, and Lows at +/-6.5dB
- Hard relay bypass
- 230V mains voltage (others on request)
Operation
- Linear Tilt, Low, Mid & High Freq.
- Baxandall tone control shelving lows and highs
- Wide-Q bell for the mids
- Switch between Tube and Solid State Stage
- Trim to match levels
Specifications
| Made in | Aarhus, Denmark |
|---|---|
| Mains voltage | 230 V (others on request) |
